Acetylene

Due to on going filling issues of our Acetylene cylinders, we are suspending new purchases so current stock can be used to support existing customer demand. To find out more, please click here.

Acetylene is the hottest and most efficient fuel gas on the market, making it the preferred product for many applications.

It is also the only fuel gas hot enough to weld steel. When using our oxygen and acetylene together, flame temperatures can reach an amazing 3200°C (5792°F).

You will typically use between 2 to 3 times the amount of oxygen as you would acetylene so don’t let the smaller size of our cylinder put you off. Using a number 5 welding nozzle with this gas cylinder will typically provide over 5 hours of welding time.

This gas becoming increasingly difficult to source for the small user. Hobbyweld now have the rent-free answer!

Combine this gas bottle with our Hobbyweld Oxygen cylinder for the perfect portable rent-free gas welding kit.

Please contact your local agent for prices and availability.

Cylinder Dimensions
Cylinder Capacities
Downloads

Cylinder Dimensions

Original (Small)

Height
550 mm
Diameter
140 mm
Tare Weight (approx.)
8 kg
Deposit
£120

Plus (Medium)

Height
895 mm
Diameter
140 mm
Tare Weight (approx.)
17 kg
Deposit
£160

Ultra (Large)

Height
875 mm
Diameter
200 mm
Tare Weight (approx.)
29 kg
Deposit
£255

Cylinder Capacities

Original (Small)

Water Capacity
5 litre
Volume
0.77m³
Cylinder Outlet
5/8" BSP LH Female

Plus (Medium)

Water Capacity
10 litre
Volume
1.54m³
Cylinder Outlet
5/8" BSP LH Female

Ultra (Large)

Water Capacity
15.9 litre
Volume
2.89m³
Cylinder Outlet
EN 561 Quick-Action

Customer Notice

In line with The Acetylene Safety Regulations 2014. FBAs (Flash Back Arrestors) and regulators must be fitted when connected to acetylene equipment.

Hobbyweld cannot be held responsible for the misuse of these products.

Hobbyweld Cylinder Deposit

The Hobbyweld cylinder is yours to use with a one-off deposit charge. There is no limit on how long you can keep the cylinder and you can exchange it as often or as little as you like.

If you need to return the cylinder, take it to any Hobbyweld Stockist to return the cylinder and collect the return deposit value then due to you.

(Note: you will need your deposit form and a small admin charge applies which will be deducted from the returnable deposit value)

More Products

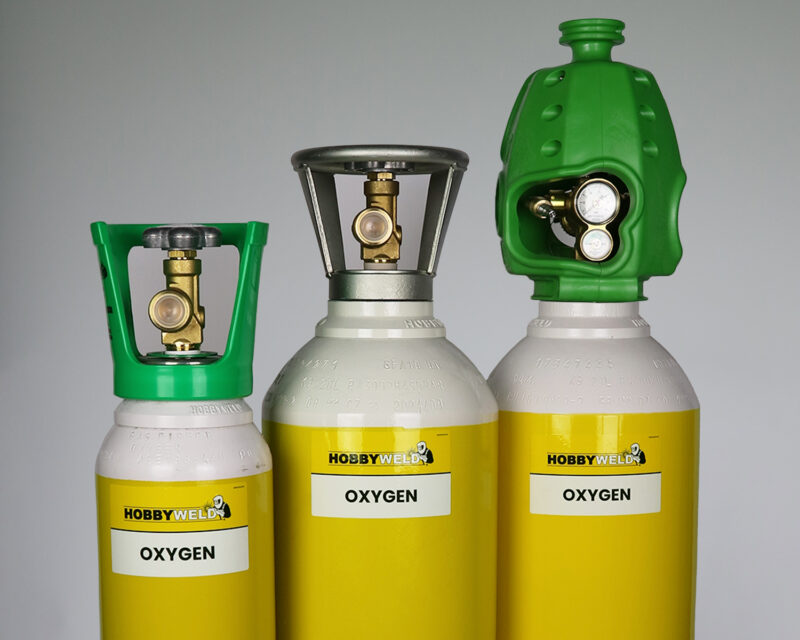

Oxygen

Oxygen is commonly and traditionally used with a fuel gas for cutting, welding, brazing and soldering.

Hobbyweld 5

As the most popular MIG welding gas mix, there are an abundance of benefits this gas can provide.

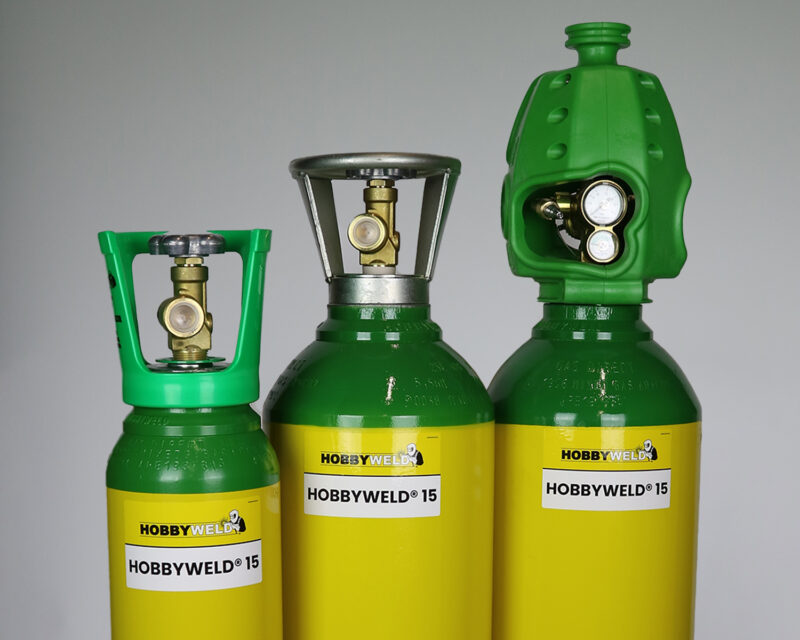

Hobbyweld 15
